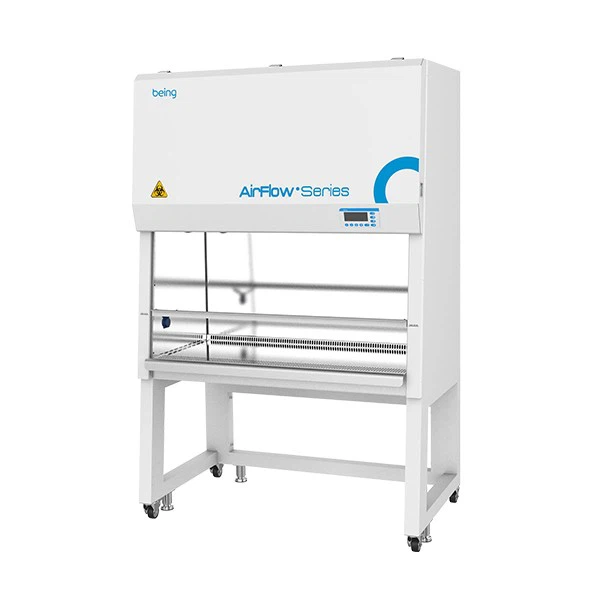

Biological Safety Cabinet
Biological Safety Cabinet
Three protection: operator, sample and environment.
Airflow system: 70% air recirculation, 30% air exhaust
A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
This biological safety cabinet has a front window operation port, through which the operator can operate inside the safety cabinet. The negative pressure air inhaled from the front window operation port is used to protect the safety of the operator; the downflow filtered by the high efficiency filter is used to protect the experimental articles in the safety cabinet; the air flow filtered by the high efficiency filter is discharged from the safety cabinet to protect the environment.
EC Fan
● High efficiency and energy saving with 30%-60% energy savings compared to AC motor.
● The automatic resistance compensation function can provide safe air velocity even when the filter resis- tance increases by 300%.
HEPA Filter
● Filtration efficen- cy>99.99%@0.3µm.
● Cleanliness ISO class 5.
● UPLA filter is optional.
Ergonomic Design
● 5°backward-slanted safety grade glass provides more comfortable viewing.
● Raised arm rest help prevent grille blockig.
● Sash is designed for easy operation with single hand.
● Backlight lighting design reduces operator visual fatigue.
Microprocessor Controller
● Large LCD display, the right place and angled down for easy reach & viewing.
● Real-time monitoring, display all safety information on one screen.
● Real-time monitoring of hepa filter status. Display sound and light alarm about failure, pre-failure, dam- aged.
Internal Working Area
● Three sides of the inner wall shape a large arc design, easy to clean.
● A special negative pressure design prevents contami- nants from escaping up the side wall into the operator’s environment.
● Paper collectors prevent the high maintenance costs associated with paper waste inhalation.
● Easy to remove working surface and support, easy to clean drain tray.
Technical Specifications
Model | BBC-3S1 | BBC-4S1 | BBC-5S1 | BBC-6S1 |
Internal Dimensions (W×D×H) mm | 920×580×655 | 1220×580×655 | 1520×580×655 | 1820×580×655 |
External Dimensions (W×D×H) mm | 1040×810×2100 | 1340×810×2100 | 1640×810×2100 | 1940×810×2100 |
Downflow Velocity | 0.33m/s | |||
Inflow Velocity | 0.53m/s | |||
Working Access Opening Height | 200mm | |||
Opening MAX. | 450mm | |||
HEPA Filter Typical Efficiency | 99.99% @ 0.3µm | |||
Noise | <65dB | |||
Fluorescent Lamp Intensity | >900Lux | |||
UV Lamp | 20W | 30W | 40W | 40W |
Voltage | 220V/50Hz | |||
Power Consumption | 450VA | 650VA | 650VA | 850VA |
Net Weight | 195kg | 245kg | 290kg | 340kg |
Shipping Weight | 265kg | 325kg | 380kg | 440kg |
Shipping Dimensions (W×D×H) mm | 1200×960×1860 | 1500×960×1860 | 1800×960×1860 | 2100×960×1860 |
●All test data are tested in a 25°C environment
